Product Info

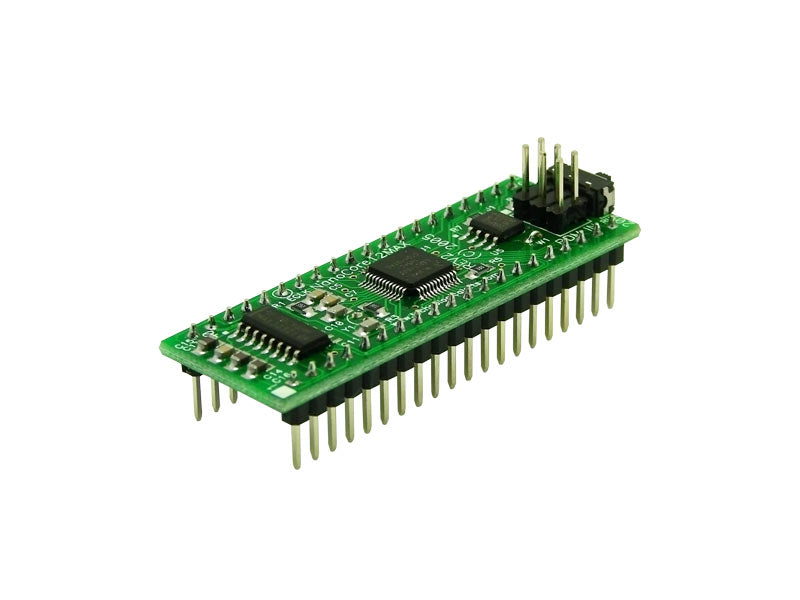

NanoCore12TM is a low-cost platform that brings the advanced features of the 9S12C microcontroller family within easy reach of engineers, students, and hobbyists. The flexible design accommodates all aspects of training, evaluation, development, and application prototyping.
Module Features:
- based on the 9S12C128 MCU (48-pin LQFP version)
- includes 8 Mhz crystal
- 24 MHz bus speed possible (via PLL)
- local 5 Volt low-dropout 100 mA regulator
- includes RS232 transceiver circuit
- includes CAN transceiver circuit
- has on-chip Serial Monitor
- supports standalone operation
- 128K Bytes Flash
- 4K Bytes Ram
- 40-pin DIP form-factor
- gold-plated 0.025" square pins
Ease-of-Use Features:
- supports programming in C, BASIC, Forth, assembler, etc.
- fast in-circuit programming
- small footprint on-chip bootloader/monitor and free uBug12 GUI for quick loading/debugging of user programs on Windows, Mac, and Linux platforms
- Run/Load switch for choice of Standalone or Monitor operation following reset
- compatible with virtually all 9S12 development tools on the market, including CodeWarrior
Flash-based code development using on-chip debug/monitor
With a 2K Flash-resident debug/monitor program, you'll be able to load your program into the remaining 126K Flash via the serial port using CodeWarrior or uBug12. The entire 126K Flash can be programmed in about 12 seconds! To use the monitor for debugging or code-loading, just set the switch to LOAD. To run your standalone program thereafter, leave the switch at RUN. A program you load into Flash this way will run every time you apply power or reset the board in Run Mode.Flash-based code development using a BDM pod
By using a more advanced development tool (such as our USBDMLT), the entire 128K Flash can be used.Additional Features
- implements PLL loop filter circuit, supporting up to 48MHz operation (24 MHz bus speed)
- capable of 3-Volt operation (Note: CAN transceiver will not work at 3V)
- standard 6-pin BDM connector for full debugging capabilities (with an optional BDM pod)
- up to 31 digital I/O lines, including Port M, Port T, and Port E
- access to eight 10-bit analog input or digital I/O port lines (Port AD)
- access to eight digital I/O port lines (Port T)
- up to six PWM timer channels (PT0 - PT4, PP5)
- up to eight Input Capture/Output Compare pins (Port T)
- key wake-up interrupt pin (PP5)
- serial peripheral interface (SPI)
- serial communications interface (SCI)
- controller area network (CAN 2.0) (on-board transceiver circuit)
- internal programmable pullup and pulldown resistors on most pins
- user access to MCU reset signal
