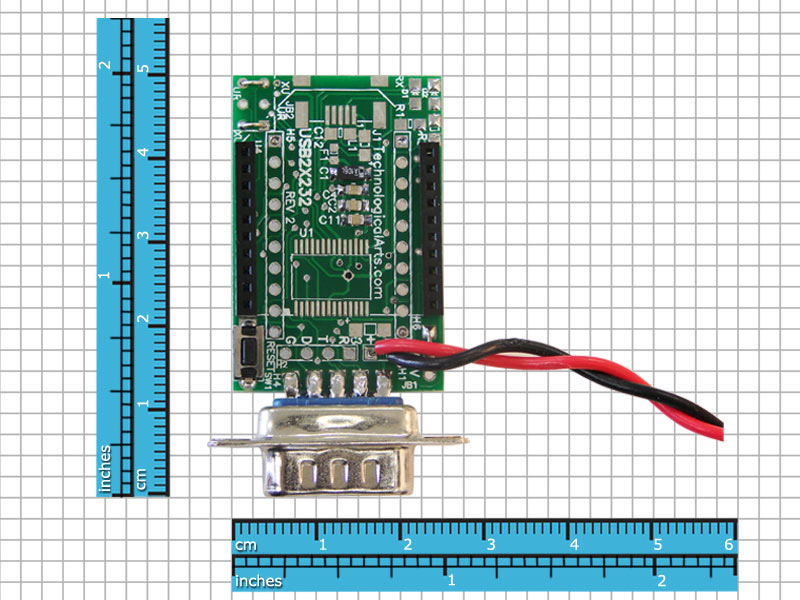

This interface adapter configuration supports RS232 connection to a user-supplied XBee RF module acting as a remote node. Regulated 5VDC must be supplied by the user to power this module.
Features:
- 2mm socket strips accepts any XBee or XBeePro module
- DB9P connector plugs into user's microcontroller module having an RS232 interface with DB9S connector
- flying leads for user-supplied regulated 5VDC power input
- small footprint (approx. 1.0x1.5 inches; 25x37 mm)
Use either our USB2X or USB2X232 product to configure your XBee modules as remote nodes before deploying them in this adapter.
Resources
Schematic diagram for this module is available from https://support.technologicalarts.com/docs/Accessories/X232sch.pdf
Product data sheet is here: https://support.technologicalarts.com/docs/Accessories/USB2X%20and%20X232%20Data%20Sheets.PDF
