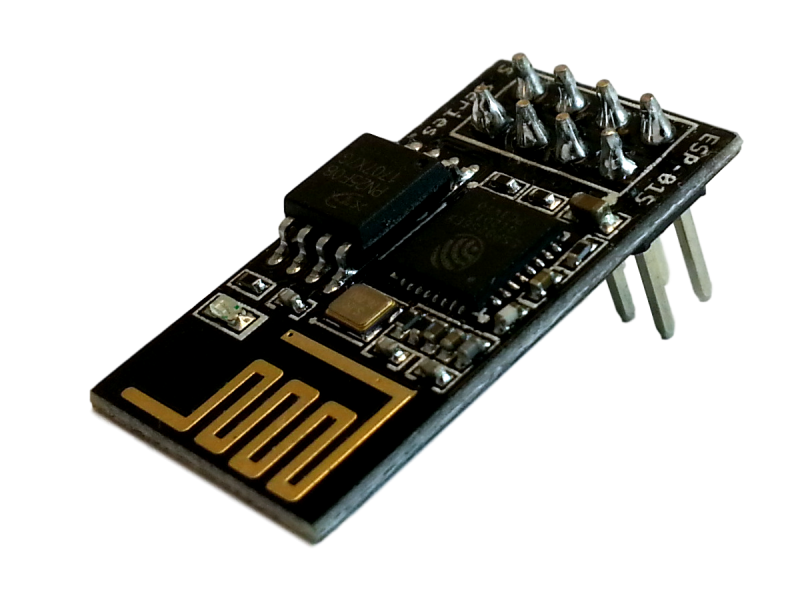

The ESP-01S ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP-01S module comes pre-programmed with AT command set firmware. ESP-01S is an extremely cost effective module with a huge, and ever growing, community.
Features:
- improved ESP-01 (better RF performance and larger memory (1MB))
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLLs, regulators, DCXO and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- 1MB Flash Memory
- Integrated low power 32-bit CPU, can be used as application processor
- SDIO 1.1 / 2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
- 2x4 dual-row header
- plug into solderless breadboard using our ADHDR08-F adapter
Notes:
- This module is not capable of 5-to-3V logic-level shifting and will require an external Logic Level Converter. Do not power it directly from your 5V dev board!
- Note that this module is not FCC-approved.
